I2C Basics

By Admin on

Inter-Integrated Circuit (I2C)

As the name suggests, Inter-IC (or the Inter-Integrated Circuit), often shortened as I2C (pronounced eye-two-see), I2C (pronounced eye-squared-see), or IIC, was developed as a communication protocol to interact between different ICs on a motherboard, a simple internal bus system. It is a revolutionary technology developed by Philips Semiconductor (now NXP Semiconductors) in 1982, and is used to connect low speed peripherals (like keyboard, mouse, memory, IO/serial/parallel ports, etc.) to the motherboard (containing the CPU) operating at much higher speed.

These days you can find a lot of devices which are I2C compatible manufactured by a variety of companies (like Intel, TI, Freescale, STMicroelectronics, etc). Somewhere around the mid-1990s, Intel devised the SMBus protocol, a subset of I2C with strict protocols. Most modern day I2C devices  support both, I2C and SMBus with little reconfiguration.

I2C Bus Interface

The most compelling thing about the I2C interface is that the devices are hooked up to the I2C bus with just two pins (and hence it is sometimes referred to as Two Wire Interface, or the TWI).

The Serial Data Line (SDA) is the data line (of course!). All the data transfer among the devices takes place through this line.

The Serial Clock Line (SCL) is the serial clock (obviously!). I2C is a synchronous protocol, and hence, SCL is used to synchronize all the devices and the data transfer together. We’ll learn how it works a little later in this post.

Start/Stop Sequence

In order for the Master to start talking to the Slave(s), it must notify the Slave(s) about it. This is done using a special start sequence. Remember a little while ago we discussed about I2C data validity – that the SDA should not change while the SCL is high? Well, it doesn’t hold good for the start/stop sequence, which is why it makes them special sequences!

When the SCL is high and SDA goes from high to low (as shown in the following diagram), it marks the beginning of the transaction of Master with the Slave(s).

Acknowledge Scheme

As mentioned earlier, I2C transfers 8 bits (1 byte) of data at a time. After the transfer of each byte is complete, the receiver must acknowledge it. To acknowledge, the receiver sends an ACK bit back to the transmitter. Here’s how it goes–

  • The transmitter (could be either Master or Slave) transmits 1 byte of data (MSB first) to the receiver during 8 clock pulses of SCL, after which it releases the SDA line i.e. the SDA line becomes HIGH for the ACK clock pulse.
  • The receiver (could be either Master or Slave, it depends) is obliged to generate an acknowledge after each byte sent by the transmitter by pulling the SDA line LOW for the ACK clock pulse (9th clock pulse) of SCL.
  • So overall, there are 9 SCL clock pulses required to transmit a byte of data. This is shown in the diagram below with the assumption that Masteris the transmitter.

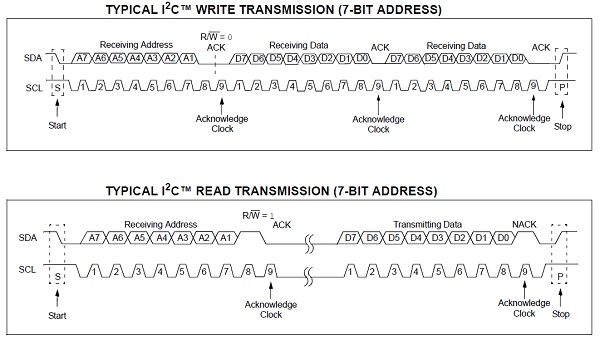

Write Algorithm

1.Master should initiate the communication by using start condition.

2.Master write the slave address 7-bit followed by read/write control bit.

3.Master should request for acknowledgement.

4.Master writes on 8-bit word address.

5.Master request for acknowledgement.

6.Master writes 8-bits data and requesting for acknowledgement.

7.Master stop the communication.

Read Algorithm

1.Start signal.

2. Slave address transmission followed by “read” bit

3. Register address transmission from which the data will be read

4. Repeated start signal.

5. Slave address transmission followed by “write” bit.

6. Reading first dummy data byte from the data register (valid slave data arrives after firstmaster ACK)

7. Data transmission from the slave to master (multiple)

8. Not acknowledge signal generation

9. Stop signal.
