LCD PROGRAM FOR INTERFACE WITH PIC MICROCONTROLLER

By Admin on

The peripheral features of the PIC16F877 are:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external

Crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Two Capture, Compare, PWM modules

Capture is 16-bit, max. Resolution is 12.5 ns

- Compare is 16-bit, max. Resolution is 200 ns

- PWM max. Resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI. (Master mode)and I2C. (Master/Slave)

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for Brown-out Reset (BOR)

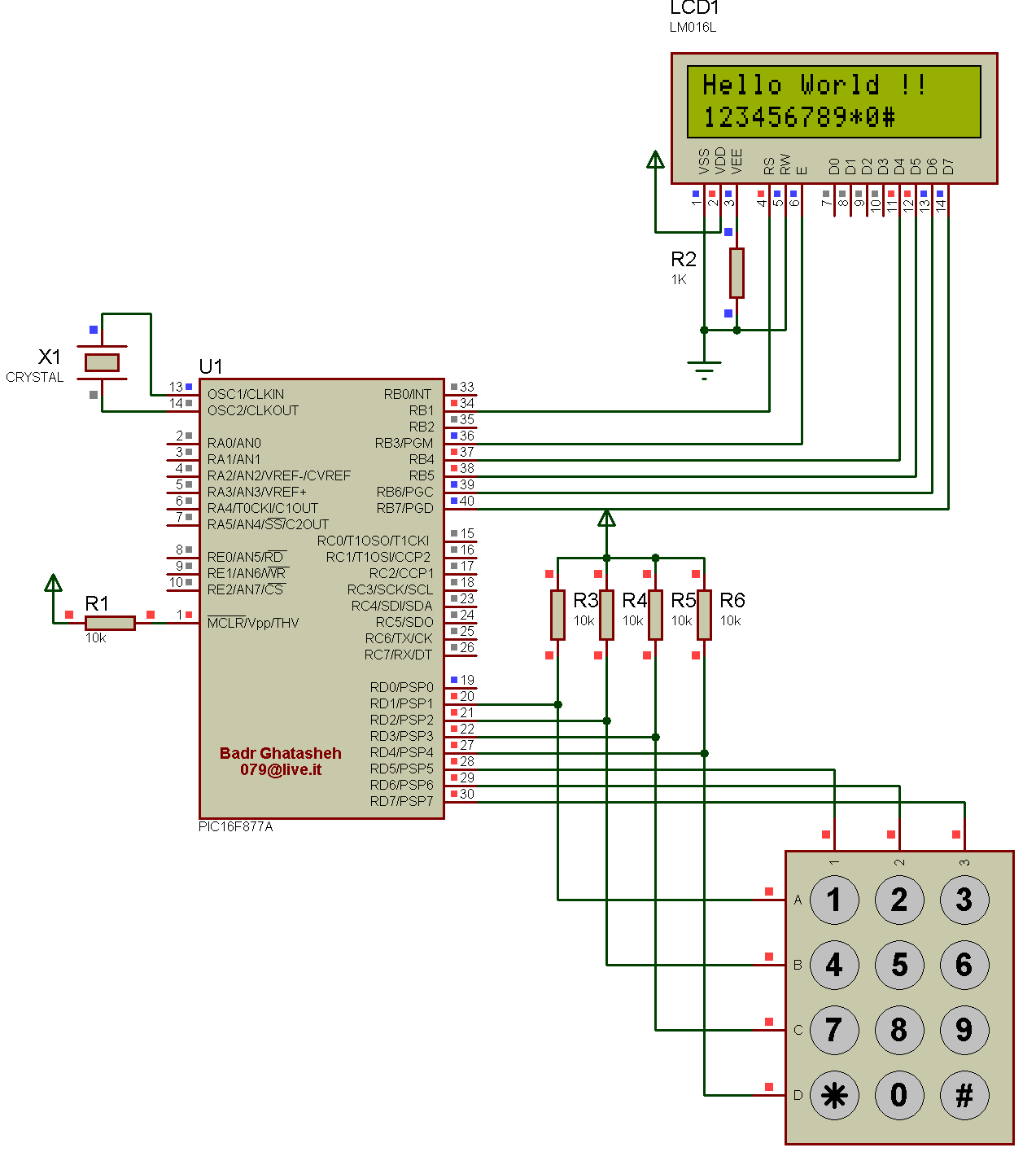

The LCD standardrequires 3 control lines and 8 I/O lines for the data bus.

 8 datapins D7:D0

Bi-directionaldata/command pins.
Alphanumeric characters are sent in ASCII format.


 RS: Register Select

RS= 0 -> Command Register is selected
RS = 1 -> Data Register is selected


 R/W:Read or Write

0 -> Write,  1 -> Read


 E:Enable (Latch data)

Usedto latch the data present on the data pins.
A high-to-low edge is needed to latch the data.


The 8 data lines are connected to PORT 1 of 8051microcontroller. The three control lines( RS,RW and EN ) are connected to PORT3.5,3.6 and 3.7 respectively.

LCD SUB-PROGRAM:

void lcd_data(unsigned char);
void lcd_cmd(unsigned char);
void lcd_str(char* );
void delay(unsigned int);
void lcd_init();

void lcd_init()
{
lcd_cmd(0x0E);
lcd_cmd(0x80);
lcd_cmd(0x38);
}

void lcd_data(unsigned char lcd_val)
{
PORTD=lcd_val;
RE2=1;
RE1=0;
RE0=1;
delay(100);
RE0=0;
}

void lcd_cmd(unsigned char lcd_val)
{
PORTD=lcd_val;
RE2=0;
RE1=0;
RE0=1;
delay(6500);
RE0=0;
}

void lcd_str(char *lcd_str1)
{
 while(*lcd_str1)
{
lcd_data(*lcd_str1++);
}

}

void delay(unsigned int del)
{
while(del--);
}

EXAMPLE:


#include<htc.h>
#include "lcdsub.c"

void main()
{

TRISA=0xFF;
TRISE0=0;
TRISE1=0;
TRISE2=0;
TRISD=0x00;
TRISB0=0;
TRISB1=0;
ADCON1=0x82;

while(1)
{

lcd_cmd(0x80);
lcd_str(" SPIRO SOLUTION ");
lcd_cmd(0xc0);
lcd_str("CHENNAI ");
delay(65500);

}

}
